Technical Manual

1.1 · What EFI Partition Manager is

EFI Partition Manager is a partition manager for UEFI firmware in one file, partmgr.efi. It reads and writes GPT and MBR partition tables — MBR complete, with extended and logical partitions — shows every change before it is written, backs tables up to a file and restores them, and wipes partitions. With a graphics screen it opens a window made for the mouse and the keyboard; without one it shows full-screen text screens.

The user manual explains what partmgr does. This manual explains how: after reading it you should be able to find your way in every source file, build and test partmgr, and change the way it reads or writes tables without breaking a disk. The reasons behind the design are recorded, decision by decision (P1–P25), in docs/decisions-and-history.md; this manual cites them by number.

1.2 · Design principles

• The table code knows no firmware. Reading, changing and writing tables (ptable.c, ptedit.c, ptwrite.c) reach the disk only through a read and a write function (PtDev). The same code runs on a UEFI block device and, in the tests, on a disk image file, where sfdisk and parted check every table it writes (P15).
• Nothing is written until Write. Every change is made on a PtTable in memory; only pt_write, pt_restore and pt_wipe write to a disk. Restore and wipe run at once, each after its own warning (P7).
• Protection at the lowest level. The disk partmgr was started from, and a write-protected one, get no write function at all: no mistake in the interface can write them (P8).
• Only the table — or a wipe. The blocks partmgr writes are the MBR, the extended boot records and the GPT headers and arrays. The only write inside a partition is a wipe, of exactly that partition's blocks.
• Damage is shown, not hidden. A damaged table is read as far as possible and explained with notes; writing a table always writes a clean and complete one.
• No EDK2 code. Own UEFI definitions, runtime, platform layer and build tools; the ordinary Linux GCC and ld build the image.
• Two interfaces, one set of actions. The window and the text screens call the same function for every action, with the same questions, checks and messages (2.4).

1.3 · Subsystems at a glance

The sources are organised in a few directories. This is the map the manual follows chapter by chapter:

src/partmgr/ptable.c, ptedit.c, ptwrite.c, units.c

The portable table code: reading, changes in memory and free space, writing, backup and restore, wipe; sizes as the user writes them (Chapters 5–10).

src/partmgr/disks_efi.c

The disks of the machine through the firmware's Block I/O protocol (Chapter 11).

src/partmgr/main.c, diskview.c, view.c, ui.c

The program: the list of disks, the screen of a disk and its actions, dialogs on the text console (Chapter 11).

src/partmgr/gui.c, gfx.c, font_inter.*

The graphical window, the drawing code and the embedded glyphs of the Inter font (Chapter 12).

src/pal/

The platform layer: entry point, console, time, files and volumes, the graphics screen, the serial port, the pointer and partmgr's own USB mouse driver (Chapters 4 and 13).

src/lib/, include/

The freestanding C runtime and the UEFI definitions (Chapter 4).

tools/

The ELF → PE32+ converter, the linker script, the documentation, font and screenshot tools, the setup script (Chapters 3 and 16).

tests/partmgr/

The Linux test tools, the table tests, the drawing checks and the QEMU test (Chapter 14).

1.4 · The project in numbers

partmgr.efi is about 800 KB (802,816 bytes for 0.2.1), of which 698 KB are the glyphs of the font. The line counts here and in the source file map are not typed by hand: make docs (tools/gen-docs.py) counts the files and writes them into this page, and make test fails when they no longer match the tree — a new source file without a row in the map fails as well.

2.1 · The layers

partmgr is a single UEFI application with no command line and no scripting (P1). Its code falls into three layers: the program, which is UEFI only; the table code, which is portable; and the platform layer, the only code besides disks_efi.c that talks to the firmware.

2.2 · Start-up and exit

1. efi_main (pal_efi.c) sets gImage, gST, gBS, gRT and gLoadedImage, turns the watchdog off, takes SimpleTextInputEx from the console input handle when it exists, remembers the console's colours, calibrates the clock, finds the volumes and the arguments, allocates 1 MiB of pages and calls app_main on that private stack (UEFI only guarantees 128 KiB); if the pages cannot be had, app_main runs on the firmware's stack.
2. app_main (main.c) calls pm_gui first, before any change of the text mode, which on some firmware changes the screen too. pm_gui returns false, with nothing changed, when the embedded glyphs fail their check or pal_gfx_open finds no graphics screen of at least 640 × 480 (P18).
3. Without a window, app_main switches the console to the narrowest text mode of at least 100 columns and 25 rows, if the firmware has one (pal_con_wide_mode, P17), hides the cursor and loops on the list of disks.
4. On exit the text screens reset the colours, clear the screen, put back the text mode partmgr found (only if they changed it) and turn the cursor on; the window gives the screen back with pal_gfx_close. efi_main calls the exit hook, resets the colours and returns EFI_SUCCESS, and the firmware goes on.

2.3 · The life of a change

Every change follows the same path: dialogs collect the input, one pt_* call changes the table in memory or returns a message, the rows are built again and the screen shows the table as it will be, with a star on what changed. Only Write, restore and wipe reach the disk, each after a red question answered with Y.

2.4 · Two interfaces, one set of actions

The window does not have actions of its own. Every action key — and every click on an action button, which is that key — goes to pm_disk_action in diskview.c, the function the text screen of a disk calls too. Two hooks make the same code draw on the window:

ui_dialogs (ui.h)

A table of four functions. When it is set, ui_message, ui_yesno, ui_input and ui_menu call the window's dialogs instead of drawing boxes on the text console. pm_gui sets it on entry and clears it on exit.

pm_screen (view.h)

A PmScreen: redraw draws the window where the text screen would draw itself before a dialog, wipe draws the progress of a wipe, wipe_stop reports a request to stop it. NULL means the text screen.

View (view.h)

One disk as both interfaces show it: the disk, its PtTable, the rows (partitions and free areas merged by start), the selection and the message line (A.3).

3.1 · Tools needed

On Debian or Ubuntu, tools/setup-dev.sh says which packages are missing and, with --install, installs them with apt (3.7).

3.2 · Make targets

3.3 · What is linked

The Makefile lists the sources in groups. TABLE_SRC is the portable table code, also compiled into the Linux test tool; GFX_SRC is the drawing code of the window with its font and its platform part (the screen and the pointer); EFI_SRC is everything partmgr.efi contains:

TABLE_SRC := src/partmgr/ptable.c src/partmgr/ptedit.c src/partmgr/ptwrite.c src/partmgr/units.c \
	src/lib/crc32.c src/lib/util.c
PAL_SRC := src/lib/libc.c src/lib/fmt.c src/lib/util.c src/lib/crc32.c src/pal/pal_efi.c src/pal/pal_common.c
# the drawing code of the graphical interface, its font, the screen and the pointer
GFX_SRC := src/partmgr/gfx.c src/partmgr/font_inter.S src/pal/pal_gfx_efi.c src/pal/pal_mouse_efi.c
EFI_SRC := $(TABLE_SRC) src/partmgr/main.c src/partmgr/view.c src/partmgr/diskview.c src/partmgr/ui.c \
	src/partmgr/gui.c src/partmgr/disks_efi.c $(GFX_SRC) \
	src/lib/libc.c src/lib/fmt.c src/pal/pal_efi.c src/pal/pal_common.c
# gfxdemo.efi: the test picture on the screen, for make qemu-test
DEMO_SRC := tests/partmgr/gfxdemo.c tests/partmgr/gfxscene.c $(GFX_SRC) $(PAL_SRC)

The glyphs enter the image through the assembler: font_inter.S includes font_inter.bin with .incbin as read-only data between the hidden symbols font_inter_data and font_inter_end; the object is rebuilt when the glyph file changes.

3.4 · The pipeline and the compiler flags

Warnings: -Wall -Wextra without -Wunused-parameter and -Wmissing-field-initializers. A clean build has no warnings; keep it that way. The link uses -nostdlib -znocombreloc -shared -Bsymbolic --no-undefined --build-id=none -z noexecstack -T tools/efi.lds. The Linux tools are built with -DPARTMGR_HOST, which makes rt.h use the system C library, with -O1 -g, and with AddressSanitizer and UBSan.

3.5 · The linker script

tools/efi.lds links at base address 0 with the entry point efi_main and page-aligned .text, .rodata, .data (with the GOT) and .bss, and discards comments, notes, unwind tables and .interp. Base 0 makes ELF virtual addresses equal to PE relative virtual addresses, which keeps the conversion trivial. Page alignment gives each PE section its own memory protection (code read + execute, data read + write, never both).

3.6 · elf2efi.py

1. checks that the input is an ELF64 x86-64 file and keeps .text, .rodata (as .rdata), .data and .bss, each of which must be page aligned;
2. for every R_X86_64_RELATIVE relocation writes the addend into the section data and records a DIR64 fixup; any other relocation type is a build error (a symbol escaped the hidden visibility), and so is a relocation in .bss or outside the sections;
3. builds a .reloc section with one block per 4 KiB page (an empty block when there are no fixups, so the image stays relocatable);
4. writes the DOS stub, the COFF header (machine 0x8664), the optional header (subsystem 10 = EFI application, DllCharacteristics DYNAMIC_BASE | NX_COMPAT) and the section table, with sections aligned to 4 KiB in memory and 512 bytes in the file.

objcopy --target=efi-app-x86_64 produces corrupted relocations with this layout; the converter is short, easy to audit, and fails loudly.

3.7 · A fresh clone

A clone carries the sources, the tests, the documentation and the whole history, but not the packages the build needs nor the git identity of the repository (it lives in .git/config). tools/setup-dev.sh reports both:

tools/setup-dev.sh            # say what is missing
tools/setup-dev.sh --install  # install it with apt (asks for sudo)

It checks build-essential, python3, fdisk, parted, dosfstools, qemu-system-x86 and ovmf, and — when the working copy has no local identity — sets the repository-local user.name and user.email (the noreply address of the project account; PARTMGR_GIT_NAME and PARTMGR_GIT_EMAIL override them). Commits use that identity. It ends by suggesting make, make test and make qemu-test.

4.1 · The contract: pal.h

src/pal/pal.h is the contract between the program and the machine; pal_efi.c, pal_gfx_efi.c and pal_mouse_efi.c implement it for UEFI, and pal_common.c holds the part shared by every build (the error names).

4.2 · pal_efi.c

• Console output converts UTF-8 to UCS-2 (a \n becomes \r\n, code points above U+FFFF become U+FFFD) and calls ConOut->OutputString in pieces of up to 256 units.
• Keys come from SimpleTextInputEx when the console has it — with the Ctrl and Alt state, Ctrl+letter normalised to its ASCII control code, a lone modifier toggle ignored — else from SimpleTextInput. pal_con_read_key waits on the key event and, with a timeout, on a timer; a timeout of 0 only polls, which the wipe uses to notice Esc.
• Text modes: pal_con_wide_mode picks, among the modes the firmware reports, the one with the fewest columns (then rows) that still has the minimum, and switches only when it is not the current one.
• Time: calibrate_tsc reads the time-stamp counter around a Stall of 10 ms; pal_ticks_ms counts milliseconds from start-up.
• Volumes: every handle with SimpleFileSystem becomes a volume fsN, sorted by device-path text, with its label, size and read-only flag from EFI_FILE_SYSTEM_INFO; the one the image was loaded from is the boot volume.
• Fatal errors: rt_fatal writes partmgr: fatal: MESSAGE and ends the image; the allocation wrappers call it on out-of-memory.
• UEFI-only modules (disks_efi.c, the graphics and pointer files) include efi_glue.h for the globals, the GUIDs and the device-path helpers (efi_devpath_text, efi_devpath_size).

4.3 · The graphics screen and the serial port

pal_gfx_efi.c takes the Graphics Output Protocol of the console's handle (ConsoleOutHandle), else the first one found, and refuses a screen smaller than 640 × 480. A canvas pixel 0x00RRGGBB is, in memory, a Blt pixel (blue, green, red, reserved), so pal_gfx_show hands the canvas to Blt (EfiBltBufferToVideo) as it is, whatever the pixel format of the screen.

The text cursor is turned off while the picture is shown. pal_gfx_close clears the text console, which redraws the screen, and puts the cursor back as it was, so a shell that started partmgr gets its cursor back. pal_con_cursor_shown reads the cursor from the text console that lives on a graphics screen's handle: the firmware's console of all consoles turns it on again by itself as soon as the screen is cleared, whatever the screen shows. The window logs the result when it closes, and the QEMU test checks it.

pal_serial_log writes a line only when the ConOut variable sends the console to a serial port — an instance of its multi-instance device path with a UART node — through the Serial I/O protocol found with LocateDevicePath. A machine without a serial console gets nothing.

4.4 · The freestanding runtime

• rt.h is the C subset every module includes: the mem*/str* declarations, inline ASCII ctype functions, ARRAY_SIZE, MIN, MAX, the allocation wrappers, the string buffer and the UTF-8 helpers. With PARTMGR_HOST it includes the system headers instead.
• Memory: malloc uses pal_alloc with a 16-byte header that stores the size (for realloc, which keeps the block when the new size is between half and all of the old one). Code calls the x wrappers (xmalloc, xcalloc, xrealloc, xstrdup…), which stop the program with rt_fatal on out-of-memory, so callers never check for NULL.
• printf: fmt.c implements vsnprintf with %d %i %u %x %X %o %c %s %p %%, the flags - 0 + space, width and precision (also *) and the length modifiers hh h l ll z j t. There is no %f.
• Strings: libc.c has the usual mem*/str* functions, strto* and qsort; util.c the string buffer Sbuf and the UTF-8 / UCS-2 conversions.
• CRC-32: crc32.c is the IEEE 802.3 checksum of GPT headers and arrays (reflected polynomial 0xEDB88320), with its table built on first use.

4.5 · The UEFI definitions

include/efi.h holds the UEFI types, services and protocols partmgr uses — system table, boot and runtime services, simple text input and output, loaded image, device path and its text conversion, file system, block I/O, RNG, graphics output, simple and absolute pointer, USB I/O and USB2 host controller, serial I/O, shell parameters — written from the UEFI Specification 2.10. No EDK2 code, header or library is used anywhere: this is a settled decision, and a new protocol is added to efi.h from the specification.

5.1 · PtDev: the disk

Three structures carry everything the table code knows: the disk (PtDev), the table (PtTable) and its partitions (PtPart), all in src/partmgr/ptable.h.

typedef struct {
    PtReadFn read;
    PtWriteFn write;   /* NULL: the disk is read-only */
    PtRandomFn random;
    void *ctx;
    uint32_t bsize;    /* bytes per block: 512 or 4096 */
    uint64_t nblocks;  /* size of the disk in blocks */
} PtDev;

read and write move whole blocks and return 0 or a PAL_E* code; random fills identifiers. On UEFI ctx is the EFI_BLOCK_IO_PROTOCOL; in pttool it is the image file. write is NULL for the boot disk and write-protected media, and every write function of ptwrite.c then returns PAL_EROFS.

5.2 · PtTable and PtPart

A PtPart has num (the GPT entry index + 1, or 1–4 and 5… on MBR), role (PT_PRIMARY, PT_EXTENDED, PT_LOGICAL), start and size in blocks, the MBR fields mbr_type, active and ebr_lba (the block of the record that describes a logical partition), the GPT fields type_guid, guid, attrs and name (UTF-8, from 36 UTF-16 units), and changed, which puts the star on the screen. pt_free releases the array; a table is otherwise a plain value.

5.3 · PtFree and the rows

pt_free_space returns the free areas as PtFree: start, size and logical, true for an area inside the extended partition, where only a logical partition fits. Areas are aligned to 1 MiB and at least 1 MiB long (7.2).

The screens merge partitions and free areas into Rows sorted by start (pm_view_rows in view.c): a row is either a partition (its index in parts) or a free area (its PtFree). The selection is an index into the rows; pm_view_select finds a row again by its start after the rows change.

6.1 · What block 0 says

pt_read reads block 0, keeps its first 512 bytes in lba0, and decides what the disk holds. It returns 0 even when the disk has no table or problems were noted; an error only when block 0 cannot be read or the disk is impossible.

1. 55 AA at bytes 510–511 and every entry's status byte 00 or 80: a valid MBR sector.
2. An entry of type EE: a protective MBR, so the disk is GPT; other entries next to it make it hybrid, and a note says so.
3. A valid MBR sector that is not the boot sector of a file system (a jump instruction, EB or E9, and NTFS, EXFAT, FAT or FAT32 at their places): an MBR.
4. Otherwise: if block 1 starts with EFI PART, a GPT whose protective MBR was wiped (noted); if block 0 is a file system's boot sector, a disk formatted without a table (a “superfloppy”, noted); if it ends in 55 AA but its entries are invalid, a note; else nothing.

6.2 · GPT: two copies, checked

gpt_copy reads a header and its entry array and accepts them only if every check passes; the first that fails becomes the reason in the note:

The primary copy is read from block 1, the backup from the primary's AlternateLBA — or from the last block when the primary is damaged. The primary is used when good, else the backup; when both fail the disk reads as having no table, with a note. Further notes say when the backup is not in the last block (the disk was enlarged) and when the two good copies differ in disk GUID, array CRC or number of entries. Entries whose type GUID is zero are empty and skipped; names are converted from UTF-16; a partition outside the usable area is noted.

6.3 · MBR: the chain of logical partitions

The four entries of block 0 give the primary partitions and at most one extended partition (types 05, 0F, 85; a second one is noted and ignored). Entries of type 0 or size 0 are empty. mbr_logicals then follows the chain of extended boot records:

Each record, at a block inside the extended partition, has in entry 1 its logical partition relative to the record and in entry 2 the next record relative to the start of the extended partition. The walk stops with a note on a record that cannot be read or has no 55 AA, on a link that does not move forward or leaves the extended partition, and after 128 records — so a looping or broken chain cannot hang partmgr. Logical partitions are numbered from 5 in chain order, as Linux and sfdisk do; one that goes beyond its extended partition, or a partition beyond the end of the disk, is noted.

6.4 · Notes

A note is a short sentence, lower case, without a full stop, added with note(t, ...) where a problem is found; the table keeps at most eight. The screens show them under the table as Note: …; the user manual explains each one. Reading never repairs anything: writing the table does, because pt_write always writes a complete, clean table (both GPT copies, the whole chain).

6.5 · Type names

Two tables at the end of ptable.c, gpt_types (16 types) and mbr_types (28 types), give the names. Their order is the order of the list the user chooses from (pt_type_at); the last four MBR entries (05, 0F, 85 and EE) are names only and never offered. pt_type_name returns NULL for an unknown type, and the screens write it as the first characters of the GUID or as type XX (pm_type_text). pt_guid_str and pt_guid_parse convert GUIDs to and from their text form, with the first three fields little-endian as GPT stores them.

7.1 · A table from zero

Nothing in ptedit.c touches the disk. The functions that can refuse return NULL on success or a message for the user, and set changed on what they change.

pt_new replaces the table with an empty one: all fields cleared, lba0 zero (no boot code — boot code belongs to boot loaders), new identifiers from dev->random (P6). A GPT gets 128 entries of 128 bytes: the array takes 32 blocks of 512 bytes (4 of 4096), so first_usable is 34 (or 6) and last_usable is the block before the backup array. GUIDs are random with the version 4 and RFC 4122 variant bits set; an MBR signature is random and never zero. PT_NONE is the empty table that pt_write turns into deleting the table.

7.2 · Free space

Partitions start on 1 MiB boundaries (pt_align = blocks per MiB). Free areas are the gaps between spans. At the top level the spans are the partitions that are not logical, inside the GPT usable area or blocks 1 … min(disk, 2³²) − 1 of an MBR. Inside the extended partition the spans are:

• its first block, always reserved: the chain must start there;
• for each logical partition, the block before it and the partition: every logical partition needs a record somewhere before it, and the block right before it is the one that is always free.

A gap becomes a PtFree after rounding its start up to 1 MiB (for logical gaps, from the block after the gap's first one, which will hold the new record) if at least 1 MiB is left. This rule is what lets the space of a deleted first logical partition be used again: the record of the next one moves to the first block of the extended partition when writing, and the space in front of it is free.

7.3 · Adding

pt_add first refuses a disk without a table, a zero size and a partition beyond the end of the disk, then applies the rules of the table:

After an MBR change renumber sorts the partitions (primary and extended by number, logical by start) and numbers the logical ones 5, 6…; a partition whose number changes is marked changed.

7.4 · Delete, type, name, active

• pt_delete removes a partition; the extended one takes its logical partitions with it.
• pt_set_type refuses a zero type, and on MBR any change between extended and non-extended types.
• pt_set_name is GPT only, at most 36 UTF-16 units.
• pt_set_active is MBR only, not for the extended partition, and clears the flag everywhere else: at most one partition is active.
• pt_can_wipe gives the rule of the wipe (10.2).

8.1 · The writing rules

Blocks are written only in ptwrite.c, and only by pt_write, pt_restore and pt_wipe. Every write goes through wr, which returns PAL_EROFS when the disk has no write function.

8.2 · GPT

write_gpt recomputes the last usable block from the real disk size (so an enlarged disk gets its backup at the end) and refuses a table whose partitions do not fit. It builds the entry array (entries at index num − 1, names converted to UTF-16) and writes, in this order:

1. block 0, the protective MBR — unless the table is hybrid, whose block 0 is left alone: the first 440 bytes as read (boot code; zero for a new table), one entry of type EE from block 1 over the disk (at most 2³² − 1 blocks), CHS 00 02 00 as the specification gives, 55 AA;
2. the primary array at block 2, then the primary header at block 1;
3. the backup array just before the last block, then the backup header in the last block.

Headers are revision 1.0, 92 bytes, with the array CRC and then the header CRC (A.4). Both copies are always written, which is also how a damaged copy is repaired.

8.3 · MBR and the chain

write_mbr writes block 0 with the boot code as read, the disk signature, one entry per primary or extended partition at slot num − 1, and 55 AA. Before it, a GPT header in block 1 or in the last block is cleared — if it is not inside a partition of the new table — so that no system finds the old GPT. Every entry gets CHS fields computed with 255 heads and 63 sectors, or FE FF FF beyond cylinder 1023 (A.5).

Then the chain, with the logical partitions in disk order. Record i goes:

• for the first logical partition, to the first block of the extended partition;
• for the others, where it was (ebr_lba) if that block is still between the previous partition and this one, else to the block just before the partition — which ptedit.c keeps free.

Entry 1 of a record is its logical partition relative to the record. Entry 2 links to the next record: type 05, start relative to the extended partition, and size from the next record to the end of the next logical partition — the convention of fdisk and sfdisk, which the tests check byte by byte. An extended partition without logical ones gets an empty record with 55 AA.

8.4 · No table

For PT_NONE, erase writes zeros to block 0, block 1 and the last block: the MBR and both GPT headers, which is what every system looks at. Nothing else is touched — the partitions' contents stay where they were.

9.1 · The backup file

pt_backup builds the file in memory from the table as read from the disk: a backup never contains unwritten changes. All numbers are little-endian.

9.2 · What is saved

The extents are block 0 and, for a GPT, block 1, the primary array, the backup header and the backup array (when the backup copy was found); for an MBR, the first block of the extended partition and every logical partition's record. Duplicates are left out and every extent is cut to the disk. A disk without a table has nothing to back up: pt_backup returns PAL_ENOENT.

9.3 · Restore

pt_restore checks the whole file before writing a block, and returns a message for the user at the first problem:

1. the magic and a length of at least 32 bytes (this is not a partmgr backup file);
2. the CRC (damaged, wrong checksum), the version (made by a newer partmgr);
3. the block size and the disk size — a backup never goes to a different disk;
4. every extent inside the disk and inside the file (truncated, bad block range), with no data left over (extra data).

It reads the current table, writes the extents, and — when the backup has no GPT but the disk had one — clears the old GPT's headers and arrays except where a restored partition lies, so that restoring over a changed disk gives back the same blocks (the tests compare the images byte for byte).

9.4 · On the screen

backup and restore in diskview.c ask for a file with the list of volumes (fs0, fs1 (ro), …) under the question. The first proposal is fsN:\partmgr-blkM.bin on the volume partmgr was started from if it can be written, else on the first writable one; after a backup or a restore the same file is proposed again for the rest of the session. canonical turns what was typed into a canonical path (FS1:/dir/file → fs1:\dir\file) and refuses a path without its volume.

• Backup only reads the disk, so it works on the boot disk and on write-protected ones too; an existing file is replaced only after a red Replace it? (Y/N).
• Restore is refused on read-only disks, reads files up to 64 MiB, and asks Restore FILE to blkN? (Y/N) — adding Unwritten changes are lost. when there are some. After it the table is read again from the disk.

10.1 · The engine: pt_wipe

typedef bool (*PtProgressFn)(void *ctx, int pass, uint64_t done, uint64_t total);
int pt_wipe(const PtDev *dev, uint64_t start, uint64_t count, PtProgressFn progress, void *ctx);

pt_wipe overwrites count blocks from start in two passes — random data, then zeros (P9) — in chunks of 4 MiB (the last one shorter). The random data comes from xoshiro256**, seeded with 32 bytes from dev->random (never all zero): the aim is to overwrite every byte with data that has no relation to the old contents, not to be unpredictable, and a fast generator keeps the pass at disk speed. The buffer is filled again for every chunk, so no two chunks are alike.

The progress function is called before the first chunk of each pass (done = 0) and after every chunk, with the pass and the blocks done in it. When it returns false the wipe stops and returns PAL_EABORT; a failed write stops it with that write's error. A disk without a write function gets PAL_EROFS, a range outside the disk PAL_EINVAL.

10.2 · The rules: pt_can_wipe

pt_can_wipe (in ptedit.c) refuses every partition while the table has unwritten changes — the position on the screen may not be the one on the disk — and the extended partition of an MBR, whose blocks hold the logical partitions and the chain of their records. A logical partition is wiped from its first block to its last: its record lies before it and is not touched.

10.3 · Progress on the screen

wipe_partition in diskview.c checks may_change and pt_can_wipe, asks the red question Wipe partition N of blkM (type, size, "name")? (Y/N) and calls pt_wipe with wipe_progress. That function looks for a request to stop without waiting — Esc on the text screen, Esc or a click on Stop in the window — and then asks Stop the wipe? (Y/N); a yes returns false.

It redraws the progress at the start and end of each pass and at most five times a second in between (draw_wipe): the pass (random data or zeros), a bar, the percentage of the pass, the amount written in it, the speed over both passes so far and the time left for both (fmt_time), estimated after half a second. On the text screen the bar is made of █ and ░ in a red box with Esc: stop; in the window pm_screen->wipe draws a red box with a Stop button. Nothing else is drawn during the wipe, so the console keeps up with the disk. The message line then says wiped (size, 2 passes, N s), stopped in pass P: partly overwritten, or the error.

11.1 · Finding the disks: disks_efi.c

pm_disks locates every handle with EFI_BLOCK_IO_PROTOCOL, sorts them by device-path text and names them blkN by position among all of them, partitions included — so a disk keeps its name from one start to the next while the hardware does not change. It then keeps the whole disks with a medium and a block size of at least 512.

• The boot disk is the one whose device path the path of gLoadedImage->DeviceHandle (the partition partmgr was loaded from) starts with, followed by / or nothing. It and write-protected media get write = NULL (P8: no override).
• The kind (NVMe, SATA, USB, SCSI, ATA, SD, eMMC, UFS, SAS, iSCSI, else disk) comes from the node names in the device path.
• Block I/O goes through a page-aligned bounce buffer from AllocatePages, which satisfies any IoAlign; every write is followed by FlushBlocks.
• Random bytes come from EFI_RNG_PROTOCOL when the firmware has it, else from a SplitMix64 generator stirred with the time-stamp counter and the clock.

The array stays valid until the next call; every call locates the devices again, which is how a rescan works.

11.2 · Drawing and dialogs: ui.c

ui_text writes a UTF-8 text at a position, padded or cut to a width counted in characters; it never writes the last cell of the screen, which scrolls some consoles. Dialogs are boxes in the middle of the screen, drawn over it, at most 70 columns wide; the caller redraws the screen before the next dialog (draw in diskview.c).

• ui_keybars draws the key bars at the bottom: a group name, then each key white on blue with its action after it — always the same keys in the same colours, so the bars never move; a key that does not apply answers with a message instead (P10). Both bars use one style, the widest that fits: boxes with a space on each side and the group names, then narrow boxes, then narrow boxes without the names.
• ui_message waits for a key (Press a key.) and turns the lower-case first letter of a message of the table code into a capital.
• ui_yesno takes Y, N and Esc (= no); Enter does nothing there, so a key pressed twice cannot write (P8).
• ui_input shows a field whose proposed text, white on blue, is replaced by the first character typed; arrows, Home, End, Backspace and Delete edit it (Enter OK · Esc Cancel).
• ui_menu is a scrolling list with Page Up/Down, Home and End (Enter Choose · Esc Cancel).

With warn set the boxes are white on red with a yellow title: every operation that destroys data uses them. When ui_dialogs is set the four dialog functions call the window's instead (12.5).

11.3 · The list of disks: main.c

Every turn of the loop calls ui_init (the console size) and pm_disks, and reads each disk's table to fill the columns Disk, Type, Size, Table, Partitions and the note started from here: read only or write-protected; the title reads EFI Partition Manager 0.2.1. The arrows, Home and End move the selection, Enter opens the disk (pm_disk_screen), Q or Esc quits, and any other key — R included — reads the disks again. The key bar is Enter Open · R Rescan · Q Quit.

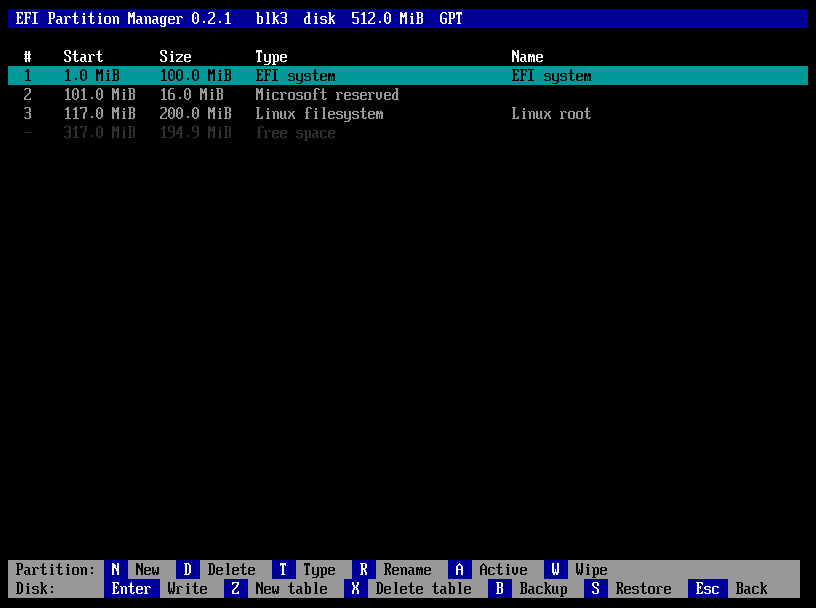

11.4 · The screen of a disk: diskview.c

pm_disk_screen reads the table into a View and loops: draw, a key, then the arrows, Home and End move in the rows, Esc leaves (asking Discard the unwritten changes? (Y/N) when there are some), and every other key goes to pm_disk_action. The title shows the disk, its kind, size and table, and on the right * = changes not written or the read-only note. Rows show number (with * when changed), start, size, type and the flags (MBR: active, logical) or the name (GPT); changed partitions are yellow, free space dark grey, the selection black on cyan; notes are yellow, the message line green or red.

Every action follows the same pattern: may_change refuses on the boot disk and on read-only media; dialogs collect the input; one pt_* call changes the table and returns a message on refusal; pm_view_rows and pm_say update the screen. A key that does not apply answers on the message line (Select a free area., Select a partition first., MBR partitions have no name.…). A new partition asks the start (proposed: the free area's start, printed by pm_fmt_exact), rounds it up to 1 MiB, asks the size (proposed: rest), the type from the list or Other… (a GUID or a hex byte), and on GPT the name; on an MBR without an extended partition it first asks Primary or Logical (creates the extended partition).

Only four functions reach the disk: write_table, restore and wipe_partition write it, backup only reads it. The first three go through confirm_destroy, the red question answered with Y or N; a refusal leaves Nothing was written. on the message line. After writing, the table is read back from the disk, so the screen shows what the disk holds.

11.5 · Sizes: units.c

pm_parse_size reads a number with up to six decimals (point or comma) and a binary unit — B, K, M, G, T, optionally followed by B or iB; s for blocks; no unit means MiB — or rest/all/max, and refuses overflows. pm_fmt_size prints one decimal (194.9 MiB); pm_fmt_exact prints whole MiB or GiB when exact, so that a proposed start reads back to the same block. The user manual lists the forms for the user.

12.1 · Drawing: gfx.c

The graphical interface (P18–P25) draws the whole window on a canvas in memory and copies it to the screen. A GfxCanvas is w × h pixels of 0x00RRGGBB, with a clip rectangle outside which nothing is drawn. The code is portable and uses integers only (the UEFI build has no floating point), so the same canvases are drawn on Linux by the tests.

12.2 · The font

partmgr has no font engine (P24). tools/gen-font.py renders Inter 4.1 once with Pillow — sizes 16, 20, 26, 32, 40 and 52 pixels, regular and semibold, ASCII, Latin-1 and a few punctuation marks and arrows — into grey levels of 4 bits per pixel, and records for each glyph its advance in 1/64 pixel (unrounded, as Raqm lays text out), its offset from the baseline and its size, and for each face the kerning of the ASCII pairs that differ by at least an eighth of a pixel. The format is described at the top of gen-font.py and in A.7.

gfx_fonts_init checks every offset of the embedded file before the first use (a damaged file means no window). gfx_text places each glyph at the rounded position, adds the kerning of the pair, and blends the grey levels between the background and the colour. Characters Inter lacks are drawn as ?. gfx_font picks the largest size not above the one asked for. The file is about 700 KB; the size of partmgr.efi is no concern (P23). The font's OFL licence is in NOTICE.md.

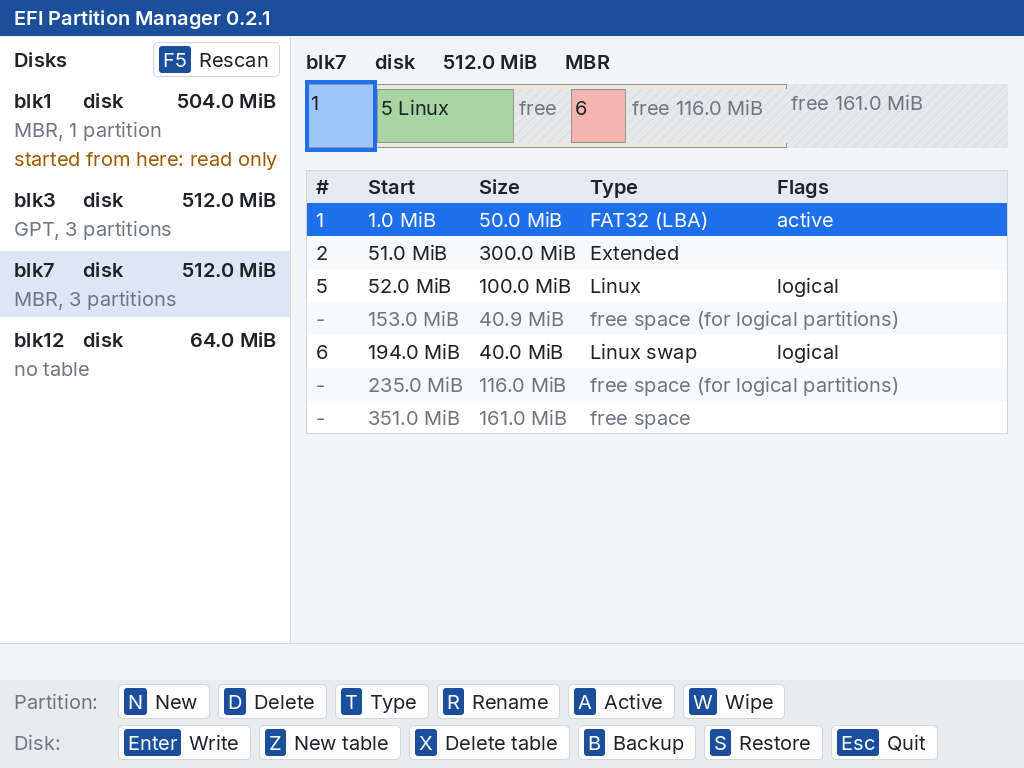

12.3 · The window: gui.c

The window follows the approved mockup (docs/assets/gui-mockup.png, P20): the disks on the left; on the right the selected disk as a bar to scale above the table of its rows; a message line; two rows of buttons.

• Layout (layout, run before every drawing): the font by the screen's height — 16 pixels up to 600 rows, 20 up to 900, 26 up to 1300, 32 up to 1700, 40 up to 2000, 52 above, so that 1080 and 2160 rows have the same proportions (P23) — and every measure from its line height: the title bar, the list of disks (300/1280 of the width, within 10 and 14 lines; at least 8 below 800 pixels), the disk's line, the bar (two lines high), the table (as many rows as fit above the notes), the message line and the rows of buttons.
• The buttons keep the group names Partition: and Disk: when both rows fit, else lose them, else get narrower margins and gaps, else go on as many rows as they need. F5 Rescan sits in the header of the list of disks.
• The table: the columns of the text screen at the proportions of the mockup, never narrower than a number, a size or a type; a cell may run over the next ones while they are empty; changed partitions in amber with their *, free space in grey; notes under it.
• The bar: every row at its place to scale (at least 3 pixels wide), coloured by type — EFI orange, swap red, Linux green, Microsoft, Windows, FAT and NTFS blue, others lilac —, the free space hatched, the extended partition a band around its logical partitions. A label is whole, or the number only, or absent: never cut. The selected row is framed.
• The disks: name, kind and size, the table and the number of partitions (read once, and again after an action and with F5), and started from here: read only or write-protected, split after its colon when it does not fit. In a narrow list the kind of disk moves to the second line. At start the first disk partmgr may change is opened.
• Very large screens are drawn at their own resolution with the faces of 40 and 52 pixels, so the text stays sharp; above 1700 rows the pointer is drawn twice as large.

12.4 · Keys and the mouse

• Keys: the arrows, Home and End move in the list that has the keys — the rows, or the disks after Tab, which moves them back and forth; its selection is blue, the other's pale. Page Up and Page Down change the disk at any time, F5 reads the disks again, Esc quits. Every other key goes to pm_disk_action.
• The mouse: a click on a button is its key; on a disk it opens it; on a row of the table or a block of the bar it selects it (a logical partition before the extended band). The button under the pointer is highlighted.
• The pointer is drawn on the screen over the canvas, which stays as it is: moving it copies back only the small area it leaves and draws the arrow on a patch where it enters. It is drawn only when a pointing device was found.
• Leaving a disk with unwritten changes — another disk, F5, Esc — asks Discard the unwritten changes? (Y/N) first, as leaving the screen of a disk does in text.

The loop waits for a key with a timeout of 10 ms and reads the pointer in between (wait_input); a press of the left button is a click at the pointer's position.

12.5 · Actions and dialogs

While the window runs, ui_dialogs points to its dialogs: a box in the middle of the dimmed window (every pixel at 3/5), at most 26 line heights wide, with a blue title — or red, with the text in semibold red, for a warning —, the text wrapped to its width at spaces and at every line break, and buttons with their keys, the first on the left (red for a warning).

pm_screen points to gui_redraw, gui_wipe (the red progress box with pass, bar, percentage, amount, speed and time left, and an Esc Stop button) and gui_wipe_stop (Esc, or a click on Stop). After an action the summary of the disk in the list is read again (summarise_selected).

12.6 · The description on the serial port

After every drawing log_window describes the window on the serial port of the console (pal_serial_log), one line per item, each with the point to click on. The QEMU test reads the window from there (P22); on a machine whose console is not on a serial port nothing is written.

gui: pointer devices: firmware 0, partmgr's USB driver 1
gui: window 1280x800 font 20
gui: disk NAME KIND SIZE TABLE, N partitions[, note][ <] at X,Y
gui: shows NAME KIND SIZE TABLE[ *]
gui: row # START SIZE TYPE [NAME|FLAGS][ <][ at X,Y] bar X,Y
gui: note TEXT
gui: button KEY LABEL at X,Y[ hover]
gui: buttons N rows, right edge X
gui: focus disks|partitions
gui: message TEXT
gui: pointer X,Y
gui: shown
dialogs and the wipe
gui: dialog TITLE[ (warning)]: TEXT          the whole text, not wrapped
gui: dbutton KEY LABEL at X,Y
gui: field TEXT                              after every change
gui: item TEXT at X,Y[ <]                    the visible items of a list
gui: dialog shown | gui: dialog closed
gui: wipe TITLE pass P N% AMOUNT stop at X,Y
gui: closed, text cursor on|off

13.1 · Two kinds of devices

OVMF has no mouse driver at all, and a real firmware may lack one too, so partmgr brings its own for USB mice (P21). pal_pointer_open gathers two kinds of devices, up to eight of each, and returns how many it found; pal_pointer_info says firmware N, partmgr's USB driver M.

• The firmware's pointers: every Simple Pointer and Absolute Pointer protocol on a handle with a device path — a real device. The console's own pointer has none: it only adds up the others, and exists even when there is no mouse, so it is left out. Relative counts become pixels at about one pixel per count at 8 counts per millimetre; absolute positions are scaled to 0…65535.
• partmgr's USB mice: every USB I/O interface of class HID, subclass boot, protocol mouse (3, 1, 2) with an interrupt-in endpoint.

13.2 · partmgr's own driver

1. partmgr opens the interface BY_DRIVER, as a driver does: when a firmware driver already has it the open is refused and the mouse is the firmware's. Meanwhile the firmware cannot take it.
2. It sends SET_PROTOCOL (boot: three bytes, buttons, x, y) and SET_IDLE (report changes only; optional, it may stall).
3. It starts an asynchronous interrupt transfer: the host controller polls the mouse at the endpoint's interval and calls report with each report, which adds the movement up and keeps the buttons.
4. pal_pointer_read takes the sums at TPL_NOTIFY, so a report cannot arrive halfway, and returns false when nothing moved and no button changed.

When no USB interface exists at all, the USB host controllers are connected first (ConnectController): a firmware that starts fast may not have looked at the devices. pal_pointer_close stops the transfers and closes the interfaces, so the firmware gets the mice back.

13.3 · Limits

14.1 · pttool

The table code is tested on Linux against sfdisk and parted; the program is tested in QEMU. Every statement about behaviour comes from a run (P15, P22).

tests/partmgr/pttool.c is the table code compiled for Linux (with AddressSanitizer and UBSan) around an image file. It reads the table, runs commands on it in order, and prints the table in memory as key=value lines:

$ build/tests/pttool disk.img new gpt add primary 2048 204800 C12A7328-F81F-11D2-BA4B-00A0C93EC93B EFI write
$ build/tests/pttool disk.img del 2 free
$ build/tests/pttool disk.img backup table.bin
$ build/tests/pttool disk.img -b 4096 size 1.5G

Commands: new gpt|mbr|none, add primary|logical START SIZE TYPE NAME (blocks; a hex byte or a GUID; - for no name), del N, type N TYPE, name N NAME, active N on|off, free, write, reread, backup FILE, restore FILE, size TEXT, and wipe N [PASS CALL], which wipes partition N and, with PASS and CALL, stops when the progress function is called for the CALL-th time in pass PASS — as if Esc had been pressed. An error prints error=MESSAGE and exits with 1.

14.2 · The table tests

tests/partmgr/run-tests.py, run by make test:

• Reading. Images built with sfdisk — GPT with 512- and 4096-byte blocks, gaps, entries out of order, accented names, attributes, a type without a name; MBR with primary, extended and logical partitions; empty tables — must read exactly as sfdisk --json reports them. Then damaged images must be read as well as possible and noted: nothing at all, a whole-disk FAT, a broken primary header or array, a broken backup, both broken, a wiped protective MBR, a hybrid MBR, an enlarged disk, a looping chain, a link to itself, a record without signature, a partition beyond the end, invalid entries.
• Sizes. What pm_parse_size accepts, refuses and prints.
• Writing. Every table partmgr writes is read back by sfdisk (which must find what was asked and nothing wrong with --verify) and by parted: new tables, logical partitions creating the extended one, changes to tables made by sfdisk (identifiers of untouched partitions unchanged), deleting and refilling the first logical partition, deleting the extended one, GPT to MBR and back, deleting a table, repairing, an enlarged disk, boot code kept or cleared, a hybrid MBR left alone, and the refusals.
• Independently of partmgr, a Python function reads every MBR written byte by byte (CHS fields, the chain, the link sizes) — and agrees with the MBRs sfdisk writes.
• Backups are restored over a changed disk, which must equal the original byte for byte; backups of another disk, damaged ones, and disks without a table are refused.
• Wipe. Partitions hold known patterns; a wipe must leave its partition all zeros (also when its size is not a whole number of chunks, and with 4096-byte blocks), the neighbours, the table and — for a logical partition — the chain untouched, and call the progress function once per chunk in order. Stopped when pass 2 starts, the partition must hold random data everywhere; stopped after the first chunk, only that chunk may have changed. The extended partition and a table with changes are refused.

14.3 · The drawing checks

build/tests/gfxtool check, run by make test with AddressSanitizer and UBSan, checks the drawing on its own: the faces chosen for each size, kerning (AV narrower than A plus V), missing characters, text with opaque and smoothed pixels that stays in its line and returns its end, clipping, fills cut to the canvas, rounded rectangles (symmetric, bordered, smoothed corners, nothing outside), the hatching and frames, the pointer's arrow (at one and two times its size, cut by the edge), and the test picture at three sizes.

gfxtool scene W H FILE [X Y] writes the test picture of tests/partmgr/gfxscene.c — every primitive and every face, laid out like the window — as a PPM file, with the pointer at X, Y when given. gfxdemo.efi (gfxdemo.c) draws the same picture on the graphics screen in QEMU, then lets the pointer follow the mouse, and reports on the serial port; the QEMU test compares the two.

14.4 · In QEMU

make qemu-test runs tests/partmgr/qemu-test.py. It boots QEMU/OVMF from a virtual FAT disk holding partmgr.efi as \EFI\BOOT\BOOTX64.EFI, so the firmware starts it, attaches test disks made by sfdisk, and drives partmgr with sendkey through the QEMU monitor. Everything partmgr draws also reaches the serial console; the test strips the terminal sequences, makes every run of blanks one space (so dialog texts wrapped over two lines still match), and waits for the expected text after the previous match. The version the title bar must show is read from partmgr.h.

1. Looking (text screens, -vga none): the list with the boot disk marked (blk0 or blk1, as the PCI slots fall), every row of both disks, the return to the firmware (its setup menu starts), and the disks identical byte for byte.
2. Changing (text screens): the boot disk refuses; on the GPT disk a new partition, a rename, a delete, Esc asking, Write answered first with Enter and N (nothing written), then with Y; a wipe with both passes, and a wipe of a bigger partition stopped with Esc (the GPT disk's writes are slowed to 60 MB/s with throttling.bps-write); on the MBR disk a logical partition, the active flag, a backup to a writable FAT disk, Write, delete the table, restore. Then, outside QEMU, sfdisk must find the GPT disk exactly as asked and the MBR disk exactly as before, and the data must be right (verify_changes).
3. Drawing: gfxdemo.efi draws the test picture at the firmware's resolution (1280 × 800 in OVMF) and at 1024 × 768; QEMU's screendump must be, pixel for pixel, the picture gfxtool draws at the same size.
4. Pointing: with QEMU's USB mouse on an xHCI controller gfxdemo.efi must report firmware 0, partmgr's USB driver 1; eleven mouse_move steps of (−40, −25) from the middle must give a click and a release at exactly that point and the arrow there on the screen, pixel for pixel; far past the corner the pointer stops at 0,0. A USB tablet and no USB device must find no pointer.
5. The window: partmgr with the video card and the USB mouse on fresh disks: from the description on the serial port, the disks, rows and buttons; on the screen the title bar and the selected row in their colours; keys (rows, Tab, disks, Page Up/Down, F5, an action key), clicks (a disk, a row, a block of the bar, a button, the highlighted button), Quit — the firmware goes on, the text cursor is back on, and the disks are unchanged byte for byte.
6. Changing in the window: the journey of part 2 again with the mouse, the keys and the window's dialogs: the boot disk refuses; new partition from the N button with a type from the list; rename; delete; quitting and changing disk with changes ask; Write asks, Enter does nothing, N cancels, a click on Yes writes; a wipe, and one stopped with Stop; on the MBR disk a logical partition whose type is clicked, the active flag, backup, Write, delete the table, restore. Then the same checks as part 2.
7. Sizes: the window at 640 × 480, 1024 × 768, 1920 × 1080 and 3200 × 1800: the font chosen by the height (16, 20, 26 and 40 pixels), the buttons inside the screen, the title bar's colour, a click on a disk. OVMF does not offer 3840 × 2160: the face of 52 pixels is not tried on a screen.

14.5 · Testing the tests

The tests were checked by breaking the code on purpose (P15). When they were written, each of these breaks made them fail: logical numbering, sizes off by one, the boot flag, the backup GPT's CRC, the link sizes of the chain, the CHS heads, a wipe with one pass only or written one block off; in QEMU, the copy to the screen one row short (exactly one row of pixels different), the vertical movement of the mouse reversed, and Enter answering Yes in the window's question. A new test should be checked the same way: break the code it guards, see it fail, put the code back.

15.1 · Conventions

• C11 with GNU extensions, 4-space indentation, braces on the same line, snake_case; file-local functions and data are static. Comments explain why, in English, and are short; every file starts with a comment saying what it contains.
• Text is UTF-8; conversion to and from UCS-2 happens only at the firmware boundary.
• No code, headers or libraries from EDK2: protocol and structure definitions are written from the UEFI specification.
• Keep the build free of warnings and the tests green; add a test with every fix.
• Delete a partition: remove it from the table. Wipe: destroy its contents. The code, the texts and the manuals never use one for the other.
• Blocks are written only in ptwrite.c, and only by pt_write, pt_restore and pt_wipe.
• Messages from the table code (pt_add and friends) are sentences without a capital or a full stop; the dialogs capitalise the first letter. Screens are terse (P16): one-line (Y/N) questions, fields with a label only, short messages — explanations belong in the user manual.
• A key that does not apply answers with a short message, never a greyed-out key (P10, P19).
• A feature is not done until the manuals describe it. Line counts in this manual are generated: run make docs after changing a file.

15.2 · Adding a partition type

Add the GUID and name to gpt_types, or the byte and name to mbr_types before the last four entries, in src/partmgr/ptable.c. The order is the order of the list on the screen. Add the type to the tables of the user manual, and a check in run-tests.py if its name matters. The colour in the window's bar comes from the type's name (type_colour in gui.c).

15.3 · Adding an action

1. Put the change of the table in ptedit.c, as a function that returns NULL or a message and sets changed; test it through a new pttool command.
2. In diskview.c, write the action: may_change, the dialogs (draw before each), the call, pm_view_rows, pm_say. Add its key to pm_disk_action and to the key bars in draw.
3. Add its button to buttons in gui.c, in the same group and order as the key bar: the click sends the key to pm_disk_action.
4. Anything that writes a disk must go through confirm_destroy.
5. Extend qemu-test.py (text screens and window), and describe the key in the user manual.

15.4 · Adding a note

Call note(t, ...) in ptable.c where the problem is found, add the damaged case to run-tests.py with has_note, and explain it in the table of notes of the user manual.

16.1 · Continuous integration

.github/workflows/ci.yml builds and tests partmgr on every push to main, on pull requests and by hand; on a version tag it also publishes the release.

1. build-test (Ubuntu 24.04): installs qemu-system-x86, ovmf, dosfstools, fdisk, parted and python3, enables KVM, runs make, make test and make qemu-test, and keeps build/partmgr.efi as an artifact.
2. release (tags v* only, after build-test): writes SHA256SUMS, takes the annotation of the tag as the release notes — the tag must be annotated — and appends the download, Secure Boot and licence notes; then publishes partmgr.efi, SHA256SUMS, LICENSE and NOTICE.md. Tags v0.* are marked as pre-releases.

16.2 · Making a release

1. Bump PARTMGR_VERSION in src/partmgr/partmgr.h, the version in both manuals, docs/index.html and the issue template.
2. Take the screenshots again with tools/screenshots.py (after make and make build/tests/partmgr-text.efi): the title bar shows the version. The window is taken at 1024 × 768, the text screens as the 100 × 31 console of partmgr-text.efi.
3. Run make test and make qemu-test, checking their exit status.
4. Tag vX.Y.Z with an annotated tag; its message becomes the release notes.

16.3 · The documentation

The manuals live in docs/ and are published with GitHub Pages; both are light only. This manual is checked by make test: tools/gen-docs.py --check fails when a count in Table 1.1 or in the source file map is out of date, when a source file has no row in the map, or when the map lists a file that does not exist. make docs rewrites the counts. The decisions and the history of the project are in docs/decisions-and-history.md.

17.1 · Every source file

Every header, C source, tool and test file, with its length in lines (counted by make docs) and its purpose. make test fails when a file is missing from this table.

18.1 · Index of the data structures

The structures that cross the program, with the file that defines them and the chapter that explains them.

18.2 · PmDisk

18.3 · View and Row

18.4 · The GPT header as written

18.5 · An MBR entry as written

18.6 · The error codes

18.7 · The glyph file

font_inter.bin, all numbers little-endian (from the description in tools/gen-font.py):

header

PMF1, u16 faces, u16 glyphs, u32 offset of the code points.

face (20 bytes)

u8 pixel size, u8 bold, u8 ascent, u8 descent, u8 line height, 3 bytes of padding, u32 offset of the glyphs, u32 offset of the kerning pairs, u32 number of pairs.

points

u32 per glyph, ascending (the same for every face).

glyph (12 bytes)

u16 advance in 1/64 pixel, i8 left, i8 top (from the baseline, negative above it), u8 width, u8 height, u16 padding, u32 offset of the pixels: rows of ceil(width / 2) bytes, the left pixel in the low 4 bits, 0 transparent, 15 opaque.

pair (4 bytes)

u8 first, u8 second (ASCII), i16 adjustment in 1/64 pixel; sorted, searched by halves.

19.1 · Terms A–L

Block I/O

The UEFI protocol that reads and writes the blocks of a disk or partition. See Ch. 11.

Boot disk

The disk partmgr was started from: shown, backed up, never written. See Ch. 11.

Boot protocol

The simple report format of USB keyboards and mice (for a mouse: buttons, x, y) that firmware can use without a report parser. See Ch. 13.

Canvas

An image in memory that the window is drawn on before it is copied to the screen. See Ch. 12.

CHS

Cylinder/head/sector addresses of old BIOSes, still stored in MBR entries next to the block numbers. See Ch. 8.

Delete / wipe

To delete a partition removes it from the table; to wipe it destroys its contents. Never one for the other.

EBR

Extended boot record: the one-block table in front of each logical partition, chained to the next. See Ch. 6.

Extent

A run of blocks saved in a backup file, with its position. See Ch. 9.

GOP

Graphics Output Protocol: the UEFI graphics screen. See Ch. 4.

Hybrid MBR

A GPT disk whose block 0 also lists some partitions for BIOS systems; partmgr reads it as GPT and leaves block 0 alone. See Ch. 6 and 8.

Logical partition

A partition inside the extended partition of an MBR, described by its own EBR, numbered from 5. See Ch. 6.

19.2 · Terms M–Z

Note

A sentence the reader adds to a table about something unusual it found. See Ch. 6.

OVMF

The UEFI firmware for QEMU that the tests run on. It has no mouse driver. See Ch. 14.

PAL

The platform abstraction layer, src/pal. See Ch. 4.

Protective MBR

Block 0 of a GPT disk: one entry of type EE over the disk. See Ch. 8.

PtDev

The table code's view of a disk: a read, a write and a random function. See Ch. 5.

Row

A partition or a free area as the screens list it, in disk order. See Ch. 5.

Span

In ptedit.c, a run of blocks in use; free areas are the gaps between spans. See Ch. 7.

Superfloppy

A disk formatted with a file system over the whole disk, without a partition table. See Ch. 6.

TPL

Task priority level: raising it to TPL_NOTIFY keeps the mouse's callback out while its sums are read. See Ch. 13.

xoshiro256**

The fast pseudo-random generator of the wipe's first pass. See Ch. 10.
